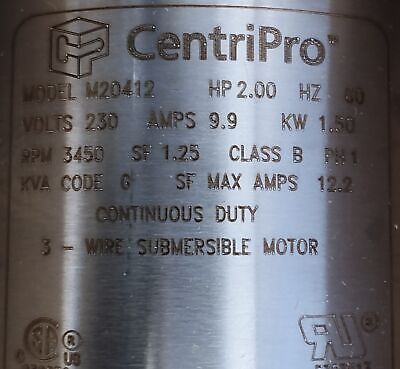

ITT M20412 CentriPro 230 V 2 hp 3450 RPM Stainless Steel Submersible Water Pump
Condition: New
Condition Description: See photos and description
Manufacturer / Brand: ITT
DESCRIPTION:

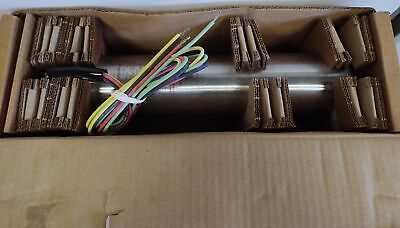

ITT M20412 CentriPro® 230 V 2HP Stainless Steel Submersible Water Pump. New in opened box. Box was opened to take photos and obtain part number and specs.
These motors are built for 4" diameter well water application.
Motor Features:
Corrosion-Resistant Construction
Stainless Steel Splined Shaft
Single-phase Voltage 230 V 60 Hz
Corrosion-Resistant Construction
Stainless Steel Splined Shaft
Hermetically-Sealed Windings
Anti-Track Self-Healing Resin System
Water Lubricated Bearings
Filter Check Valve
Kingsbury-type Thrust Bearing Rated for 1500 lbs. Down-thrust
Pressure Equalizing Diaphragm
Built-in Lightning Arrestors (single-phase)
Removable Water-Bloc‚Ñ¢ Lead
NEMA Pump Mounting Dimensions
UL 778 Recognized
CSA C22.2 #108 Certified
Temperature and time rating continuous in 86 °F (30 °C) water at 1/4 ft. per second flow past motor
Rotation: single-phase - CCW
Top Casting - 304 SS
Bottom Casting - 303 SS Over Iron
Stator Shell - 301 SS
Stator Ends - Low Carbon Steel
Shaft Extension - 303 SS
Fasteners - 300 Series SS
Seal Cover - Sintered Bronze
Seal Sand Fighter‚Ñ¢ SiC/SiC Mechanical Seal
Diaphragm - Nitrile Rubber
Diaphragm Plate - 304 SS
Diaphragm Spring - 302 SS
Diaphragm Cover - 304 SS
Slinger - Nitrile Rubber

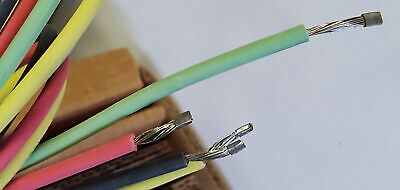

Lead Wire (or Cable)- XLPE
Lead Potting - Epoxy
Lead Clamp - 300 Series SS
Filter - Delrin & Polyester
ROW11-B3
